MENA-Water manufactures containerized sludge handling systems.
All process equipment is arranged inside one 40’ ISO shipping container. This enables us to achieve very short realization time. You will get reliable and tested plants and only need plug and play at site.
For best performance we use the belt press with pre-thickener completed with polymer preparation, mixer, tanks, pumps included cabling and piping, everything pre-installed.
BELT PRESS
Sludge is pumped, stored and polymer is prepared, dosed and mixed to the sludge flow towards the dewatering machine. Upstream there is the screw pre-thickener which performs the initial solid/liquid separation stage, taking sludge solids concentration from 0.5 -3% up to 5-15 %. The dewatering in the following belt press occurs firstly in the low pressure zone, then in the wedge zone and finally in the high pressure zone where the filter cake is compressed between the perforated cylinder cloth and the main cloth. The discharged sludge cake can reach dry solid contents variable from of 18 to 30% depending on the sludge.
CAPACITIES
- The belt press will handle sludge flow from 2 to 8 m3/hr per single unit

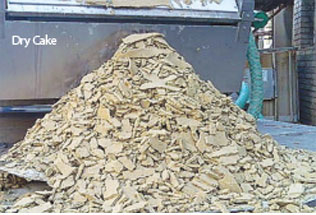

- The dry cake will be 18-30% DS due to type of sludge
- High capacities can be achieved through modular arrangement
FEATURES
- Fast delivery and start-up due to the mobile concept
- Quality equipment in stainless steel
- Compact design
- High packing density
- Very good price-performance ratio
- Low maintenance and minimum operation requirements
- Minimum construction work on site and easy to relocate
APPLICATIONS
MENA-Water offers tailor-made containers to treat sludge from different applications.
- Municipal sludge
- Industrial sludge
- Mixed fiber, biological, chemical sludge

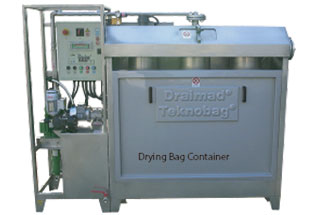

DRY BAG
For small applications we offer this system using drying bags. The very small footprint of the plant allows best placement.
The package plant is completely automatic, with all functions, including sludge conditioning, bag filling and draining cycles, controlled by an integral control panel. The automatic filled bags also act as strong containers for transport of the dehydrated sludge to the disposal point.
